What is a Layer 3 Switch?

By on March 18, 2024

In the complex world of networking, various devices and technologies work together to ensure efficient and reliable communication between devices. One such critical device is the Layer 3 switch. This blog post will delve into the concept of Layer 3 switches, explaining what they are, how they work, their benefits, differences from other network devices, use cases, and their role in modern networking.

What is a Layer 3 Switch?

A Layer 3 switch, also known as a multilayer switch, is a device that combines the functions of a traditional network switch (Layer 2) with the routing capabilities of a router (Layer 3). This dual functionality allows Layer 3 switches to forward data based on both MAC addresses (Layer 2) and IP addresses (Layer 3). Essentially, a Layer 3 switch can perform both switching and routing tasks, making it a versatile and powerful component in network design.

Key Characteristics of Layer 3 Switches:

  1. Routing Capabilities: Layer 3 switches can perform routing functions, such as forwarding packets based on IP addresses and making routing decisions.
  2. Switching Efficiency: They offer the high-speed data forwarding capabilities of traditional Layer 2 switches.
  3. Support for VLANs: Layer 3 switches can route traffic between different Virtual Local Area Networks (VLANs), enhancing network segmentation and security.
  4. High Throughput: They are designed to handle large amounts of data with low latency, making them suitable for high-performance network environments.

How Layer 3 Switches Work

To understand how Layer 3 switches work, it’s essential to grasp the basic concepts of Layer 2 switching and Layer 3 routing:

Layer 2 Switching:

  • Operates at the Data Link Layer (Layer 2) of the OSI model.
  • Uses MAC addresses to forward frames within the same VLAN or subnet.
  • Builds and maintains a MAC address table to track which MAC addresses are associated with which switch ports.
  • Provides high-speed data forwarding within a local network segment.

Layer 3 Routing:

  • Operates at the Network Layer (Layer 3) of the OSI model.
  • Uses IP addresses to forward packets between different subnets or networks.
  • Builds and maintains a routing table to determine the best path for forwarding packets.
  • Supports advanced routing protocols such as OSPF, EIGRP, and BGP.

Layer 3 Switching:

  • Combines the capabilities of Layer 2 switching and Layer 3 routing.
  • Forwards frames within the same VLAN using MAC addresses (Layer 2).
  • Routes packets between different VLANs or subnets using IP addresses (Layer 3).
  • Maintains both MAC address tables and routing tables.
  • Utilizes hardware-based switching and routing, providing high performance and low latency.

Example of Layer 3 Switch Operation:

  1. Intra-VLAN Traffic: When devices within the same VLAN communicate, the Layer 3 switch forwards frames based on MAC addresses, similar to a traditional Layer 2 switch.
  2. Inter-VLAN Traffic: When devices in different VLANs communicate, the Layer 3 switch routes packets based on IP addresses. It identifies the destination VLAN, performs a routing decision, and forwards the packet to the appropriate VLAN.

Benefits of Layer 3 Switches

Layer 3 switches offer several benefits that make them an attractive choice for modern network environments:

  1. Improved Performance: By combining switching and routing functions in a single device, Layer 3 switches reduce the need for separate routers, leading to lower latency and higher throughput.
  2. Simplified Network Design: Layer 3 switches simplify network architecture by integrating routing and switching capabilities, reducing the number of devices required.
  3. Enhanced Scalability: Layer 3 switches can handle larger networks with multiple VLANs and subnets, making them suitable for growing network environments.
  4. Cost Efficiency: Using Layer 3 switches can be more cost-effective than deploying separate Layer 2 switches and routers, as they consolidate functionalities into one device.
  5. VLAN Segmentation: Layer 3 switches support VLAN segmentation, enhancing network security and performance by isolating traffic between different VLANs.
  6. Advanced Features: They offer advanced features such as Quality of Service (QoS), access control lists (ACLs), and traffic shaping, providing greater control over network traffic.

Differences Between Layer 2 Switches, Layer 3 Switches, and Routers

Understanding the differences between Layer 2 switches, Layer 3 switches, and routers is crucial for designing efficient network architectures:

Layer 2 Switch:

  • Operates at the Data Link Layer (Layer 2) of the OSI model.
  • Forwards frames based on MAC addresses.
  • Maintains a MAC address table for port-to-MAC address mappings.
  • Does not perform routing functions.
  • Primarily used for intra-VLAN communication within a single network segment.

Layer 3 Switch:

  • Operates at both the Data Link Layer (Layer 2) and the Network Layer (Layer 3).
  • Forwards frames based on MAC addresses (Layer 2) and routes packets based on IP addresses (Layer 3).
  • Maintains both MAC address tables and routing tables.
  • Supports VLAN segmentation and inter-VLAN routing.
  • Combines the functionalities of a switch and a router, offering high performance and low latency.

Router:

  • Operates at the Network Layer (Layer 3) of the OSI model.
  • Forwards packets based on IP addresses.
  • Maintains a routing table for path determination.
  • Supports advanced routing protocols (e.g., OSPF, EIGRP, BGP).
  • Primarily used for inter-network communication, connecting different networks or subnets.

Key Differences:

  • Functionality: Layer 2 switches focus on switching within a local network, Layer 3 switches combine switching and routing, and routers focus on routing between different networks.
  • Performance: Layer 3 switches offer higher performance for intra-network and inter-network traffic compared to traditional routers due to hardware-based switching and routing.
  • Deployment: Layer 2 switches are used for local network segments, Layer 3 switches are used for large, segmented networks, and routers are used for connecting different networks or the internet.

Use Cases for Layer 3 Switches

Layer 3 switches are versatile devices that can be used in various network scenarios. Here are some common use cases:

  1. Enterprise Networks:
    • Layer 3 switches are ideal for large enterprise networks with multiple VLANs and subnets. They provide efficient inter-VLAN routing, reducing the need for dedicated routers and enhancing network performance.
  2. Data Centers:
    • In data centers, Layer 3 switches are used to route traffic between different server clusters and segments. Their high throughput and low latency capabilities are essential for handling the heavy data loads typical in data center environments.
  3. Campus Networks:
    • Campus networks, such as those in universities or large corporate campuses, benefit from Layer 3 switches for segmenting and routing traffic between different buildings, departments, or floors.
  4. Small to Medium-Sized Businesses (SMBs):
    • SMBs can use Layer 3 switches to create scalable and efficient network architectures. These switches provide the flexibility to grow the network without the complexity of managing multiple devices.
  5. Branch Offices:
    • Layer 3 switches can be deployed in branch offices to provide local routing and switching, connecting the branch to the main office network through VPNs or dedicated links.

Configuring a Layer 3 Switch

Configuring a Layer 3 switch involves setting up VLANs, routing protocols, and other network settings. Here’s a basic example of how to configure a Layer 3 switch:

  • Creating VLANs:
    • Define VLANs to segment the network and improve security and performance.
  • Assigning Ports to VLANs:
    • Assign switch ports to the created VLANs.

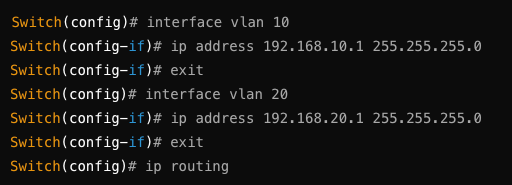

  • Enabling Inter-VLAN Routing:
    • Configure the switch to route traffic between VLANs.
  • Configuring Routing Protocols (Optional):
    • Set up routing protocols such as OSPF or EIGRP for dynamic routing.

Future Trends in Layer 3 Switching

As network demands continue to evolve, Layer 3 switching technology is also advancing to meet new challenges and requirements. Here are some future trends and developments in Layer 3 switching:

  1. Software-Defined Networking (SDN):
    • SDN separates the control plane from the data plane, allowing network administrators to manage network services through a centralized controller. Layer 3 switches are increasingly being integrated with SDN to provide more flexible and programmable network environments.
  2. Network Function Virtualization (NFV):
    • NFV involves virtualizing network services that traditionally run on dedicated hardware. Layer 3 switches are evolving to support NFV, enabling virtualized routing and switching functions to run on general-purpose hardware, reducing costs and improving scalability.
  3. Enhanced Security Features:
    • Future Layer 3 switches will incorporate more advanced security features, such as integrated firewalls, intrusion detection and prevention systems (IDPS), and advanced threat protection. These features will help protect against sophisticated cyber threats and improve overall network security.
  4. Higher Performance and Scalability:
    • With the increasing demand for higher bandwidth and lower latency, Layer 3 switches are being developed with more powerful hardware and higher port densities. This includes support for multi-gigabit and terabit speeds, as well as advanced load balancing and traffic management capabilities.
  5. Automation and AI Integration:
    • Automation and artificial intelligence (AI) are becoming integral parts of network management. Layer 3 switches will leverage AI and machine learning algorithms to optimize network performance, predict and mitigate potential issues, and automate routine tasks such as configuration and monitoring.
  6. IoT and Edge Computing:
    • As the Internet of Things (IoT) and edge computing continue to grow, Layer 3 switches will need to support a massive number of connected devices and distributed computing resources. This will involve enhanced capabilities for managing diverse traffic types, ensuring low-latency communication, and maintaining high levels of security and reliability.
  7. Integration with Cloud Services:
    • Hybrid and multi-cloud environments are becoming more common, requiring seamless integration between on-premises networks and cloud services. Future Layer 3 switches will offer improved support for cloud connectivity, including direct integration with cloud providers and optimized routing for cloud-based applications.

Conclusion

Layer 3 switches are a crucial component in modern network infrastructure, offering a blend of high-speed switching and advanced routing capabilities. They provide the performance, flexibility, and scalability needed to support complex and growing network environments. By understanding the functionalities, benefits, and configurations of Layer 3 switches, network administrators can design and implement efficient and robust network solutions.

As technology continues to advance, Layer 3 switches will evolve to meet new demands, incorporating features such as SDN, NFV, enhanced security, AI-driven automation, and seamless cloud integration. Staying informed about these trends and developments will enable organizations to leverage the full potential of Layer 3 switches and maintain a competitive edge in the ever-changing landscape of networking.

Whether you are managing a small business network, a large enterprise environment, or a cutting-edge data center, Layer 3 switches offer the capabilities needed to ensure efficient, secure, and reliable communication. By adopting best practices and embracing emerging technologies, you can build a network infrastructure that meets the demands of today and anticipates the needs of tomorrow.
